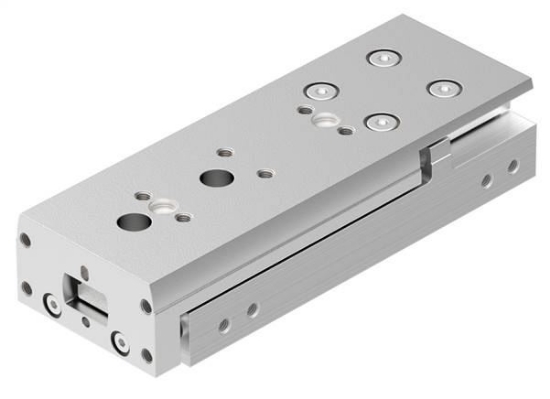

Stroke [mm]
|
30 |
|
Piston diameter
|
8 mm |
|
Operating mode actuator unit
|
Joch |
|
Dampening
|
Elastomerdämpfung, beidseitig, Hub nicht einstellbar |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Joch kinematics |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
1.5 to 8 |
|
Max. speed [m/s]
|
0,5 |
|
Repeatability
|
<= 0,3 mm |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
-10 to 60 |
|
Impact energy at the end positions [J]
|
0,030 |
|
Dampening length [mm]
|
1,5 |
|
Max. force Fy [N]
|
300 |
|
Max. force Fz [N]
|
300 |
|
Max. torque Mx [Nm]
|
2,8 |
|
Max. torque My [Nm]
|
2,0 |
|
Max. torque Mz [Nm]
|
2,0 |
|
Theoretical force at 6 bar, Return flow [N]
|
45 |
|
Theoretical force at 6 bar, flow [N]
|
61 |
|
Moving mass [g]
|
176,0 |
|
Product weight [g]
|
92,0 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection
|
M5 |
|
Material information
|
Copper and PTFE-free |
|
Cover material
|
Aluminium wrought alloy |
|
Seals material
|
HNBR |
|
Werkstoff Führung
|
POM |
|
Housing material
|
Aluminium wrought alloy |
|
Piston rod material
|
High-alloyed stainless steels |
|
Weight
|
92,0 g / Pcs |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DGST (english) , Data sheet |
