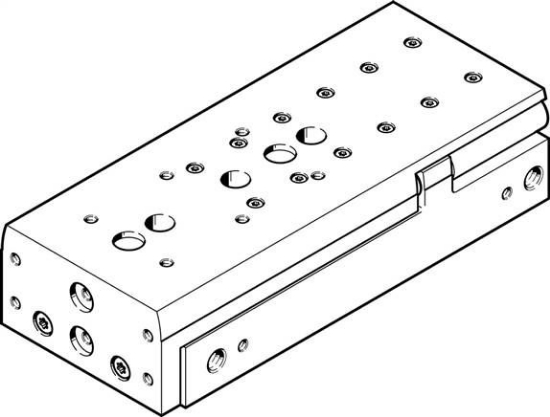

DGST-12-20-PA (8085124) مینی اسلاید (جک کشویی) پنوماتیک فستو

کد سفارش تولید کننده: 8085124
مشخصات
عنوان ویژگی مقدار ویژگی
Stroke [mm] 20
Piston diameter 12 mm
Operating mode actuator unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide ball guide
Construction set up Joch kinematics
Position detection For proximity switch
Operating pressure [bar] 1 to 8
Max. speed [m/s] 0,8
Repeatability <= 0,3 mm
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 - low corrosion stress
ambient temperature [°C] -10 to 60
Impact energy at the end positions [J] 0,120
Dampening length [mm] 1,3
Max. force Fy [N] 520
Max. force Fz [N] 520
Max. torque Mx [Nm] 4,2
Max. torque My [Nm] 4,2
Max. torque Mz [Nm] 4,2
Theoretical force at 6 bar, Return flow [N] 102
Theoretical force at 6 bar, flow [N] 136
Moving mass [g] 261,0
Product weight [g] 502,0
Fastening type With throughway bores
Pneumatic connection M5
Material information Copper and PTFE-free
Cover material Aluminium wrought alloy
Seals material HNBR
Werkstoff Führung TPE-E
Housing material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
Alignable end position range / Length front [mm] 21,1
Alignable end position range / Length rear [mm] 21,5
Weight 502,0 g / Pcs
Customs duty number 84123100
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: DGST (english) Data sheet
