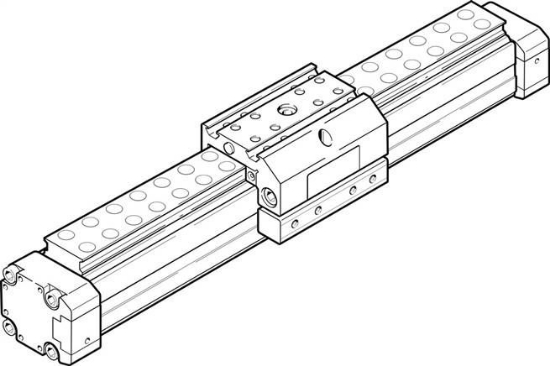

Stroke [mm]
|
400 |
|
Piston diameter
|
40 mm |
|
Dampening
|
PPV: Pneumatic dampening both sides adjustable |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Carrier principle
|
Form-fitting (slot) |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
1.5 to 8 |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
ambient temperature [°C]
|
-10 to 60 |
|
Dampening length [mm]
|
30 |
|
Theoretical force at 6 bar, Return flow [N]
|
754 |
|
Theoretical force at 6 bar, flow [N]
|
754 |
|
Moving mass [g]
|
1.700 |
|
Moving mass at 0 mm stroke [g]
|
1.700 |
|
Base weight at 0 mm stroke [g]
|
4.480 |
|
Supplement moved mass per 10 mm stroke [g]
|
97 |
|
Alternative connections
|
See product drawing |
|
Pneumatic connection
|
G1/4 |
|
Cover material
|
Cast aluminium |
|
Seals material
|
NBR |
|
Housing material
|
aluminium |
|
Weight
|
9 kg / Pcs |
|
GTIN
|
4052568162474 |
|
Customs duty number
|
84123100 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DGP/DGPL (english) , Data sheet |
