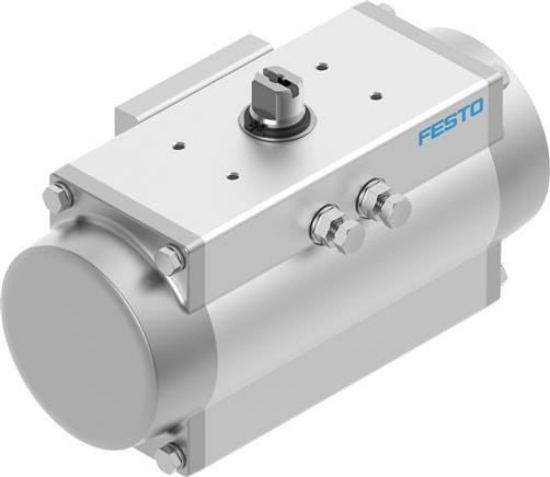

Position drive dimensions
|
80 |
|
Flange drilling screen
|
F0507 |
|
Swivel angle [deg]
|
90 |
|
Adjustable range end position at 0° [deg]
|
-5 to 5 |
|
Adjustable range end position at 90° [deg]
|
-5 to 5 |
|
Shaft connection Depth [mm]
|
19,3 |
|
Standard connection to fitting
|
ISO 5211 |
|
Dampening
|
No dampening |
|
installation position
|
arbitrary |
|
Principle of operation
|
single action |
|
Construction set up
|
Toothed rack/pinion |
|
Position detection
|
Visual |
|
Closing direction
|
Right closing |
|
Valve connection corresponds to standard
|
VDI/VDE 3845 (NAMUR) |
|
Connection for position controllers and position feedback signal comply with standard
|
VDI/VDE 3845 Size AA 1 |
|
Safety Integrity Level (SIL)
|
Produkt kann eingesetzt werden in SRP/CS bis SIL 2 High Demand |
|
Operating pressure [bar]
|
2 to 8 |
|
Nominal operating pressure [bar]
|
3,0 |
|
ATEX gas category
|
II 2G |
|
Ex ignition protection type gas
|
Ex h IIC T4 Gb X |
|
ATEX dust category
|
II 2D |
|
Ex ignition protection type dust
|
Ex h IIIC T105°C Db X |
|
Ex ambient temperature
|
-20°C <= Ta <= +80°C |
|
ambient temperature [°C]
|
-20 to 80 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
CE certificate (see declaration of conformity)
|
to EU EX protection directive (ATEX) |
|
Rotary torque for nominal operating pressure and 0° pivot angle [Nm]
|
30,1 |
|
Rotary torque for nominal operating pressure and 90° pivot angle [Nm]
|
15,7 |
|
Information about torque
|
The operating torque of the actuator may not be higher than the maximum permitted torque listed in ISO 5211, related to the size of the fastening flange and the coupling. |
|
Air consumption a 6 bar per cycle 0°-90°-0° [LTR]
|
3,1 |
|
Product weight [g]
|
3.746 |
|
Shaft connection
|
V17 |
|
Pneumatic connection
|
G1/8 |
|
Material information
|
RoHs compliant |
|
Connection plate material
|
Aluminium wrought alloy, anodised |
|
Material number connection plate
|
EN AW-6063-T6 |
|
Cover material
|
Alu-Druckguss, beschichtet |
|
Material number cover
|
EN AC-46100-D |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy, anodised |
|
Material number housing
|
EN AW-6063-T6 |
|
Piston rod material
|
Aluminium die casting |
|
Material number piston rod
|
EN AC-46100-D |
|
Bearing material
|
POM |
|
Lug material
|
Cast stainless steel |
|
Material number lug
|
1.4308 |
|
Screws material
|
High-alloyed stainless steels |
|
Material number screw
|
1.4301 |
|
Shaft material
|
High-alloyed stainless steels |
|
Material number shaft
|
1.4305 |
|
Spring force torque at a swivel angle 0° [Nm]
|
14,8 |
|
Spring force torque at 90° [Nm]
|
29,2 |
|
Spring material
|
spring steel |
|
Weight
|
3.746 g / Pcs |
|
Customs duty number
|
84123900 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DFPD (english) , Data sheet |
