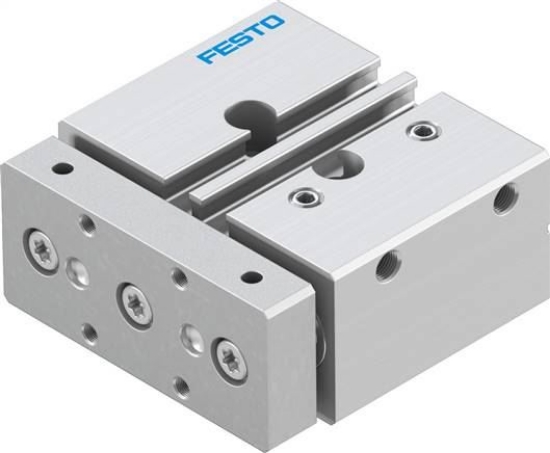

Centre of mass distance of payload to Joch plate [mm]
|
25 |
|
Stroke [mm]
|
10 |
|
Piston diameter
|
12 mm |
|
Operating mode actuator unit
|
Joch |
|
Dampening
|
P: Elastic silencer rings / plates double-sided |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Guide |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
2 to 10 |
|
Max. speed [m/s]
|
0,8 |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
ambient temperature [°C]
|
-5 to 60 |
|
Impact energy at the end positions [J]
|
0,070 |
|
Max. permitted moment load Mx depending on stroke [Nm]
|
0,880 |
|
Max. usable load depending on the stroke at a defined distance xs [N]
|
28,00 |
|
Theoretical force at 6 bar, Return flow [N]
|
51 |
|
Theoretical force at 6 bar, flow [N]
|
68 |
|
Moving mass [g]
|
155,0 |
|
Product weight [g]
|
314,0 |
|
Alternative connections
|
See product drawing |
|
Pneumatic connection
|
M5 |
|
Material information
|
Copper and PTFE-free |
|
Cover material
|
Aluminium wrought alloy |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Piston rod material
|
High-alloyed stainless steels |
|
Max. force Fy [N]
|
193 |
|
Max. force Fy static [N]
|
355 |
|
Max. force Fz [N]
|
193 |
|
Max. force Fz static [N]
|
355 |
|
Max. torque Mx [Nm]
|
3,95 |
|
Max. torque Mx static [Nm]
|
7,28 |
|
Max. torque My [Nm]
|
1,74 |
|
Max. torque My static [Nm]
|
3,20 |
|
Max. torque Mz [Nm]
|
1,74 |
|
Max. torque Mz static [Nm]
|
3,20 |
|
Centre of mass of the moved mass depending on stroke [mm]
|
13,6 |
|
Weight
|
314,0 g / Pcs |
|
GTIN
|
4052568139933 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DFM/DFM-B (english) , Data sheet |
