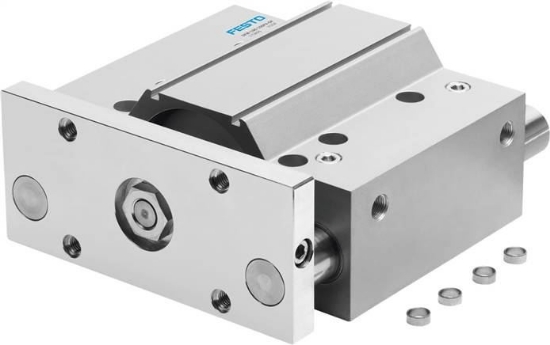

DFM-100-25-P-A-GF (170892) سیلندر راهنمادار پنوماتیک فستو

کد سفارش تولید کننده: 170892
مشخصات
عنوان ویژگی مقدار ویژگی
Centre of mass distance of payload to Joch plate [mm] 125
Stroke [mm] 25
Piston diameter 100 mm
Operating mode actuator unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide sliding guide
Construction set up Guide
Position detection For proximity switch
Operating pressure [bar] 0.5 to 10
Max. speed [m/s] 0,4
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 - low corrosion stress
ambient temperature [°C] -20 to 80
Impact energy at the end positions [J] 1,000
Max. permitted moment load Mx depending on stroke [Nm] 42,400
Max. usable load depending on the stroke at a defined distance xs [N] 452,00
Theoretical force at 6 bar, Return flow [N] 4.418
Theoretical force at 6 bar, flow [N] 4.712
Moving mass [g] 6.301,0
Product weight [g] 11.000,0
Alternative connections See product drawing
Pneumatic connection G3/8
Material information RoHs compliant
Cover material Aluminium wrought alloy
Seals material NBR
Housing material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
Weight 11.000,0 g / Pcs
GTIN 4052568139865
Customs duty number 84123100
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: DFM/DFM-B (english) Data sheet
