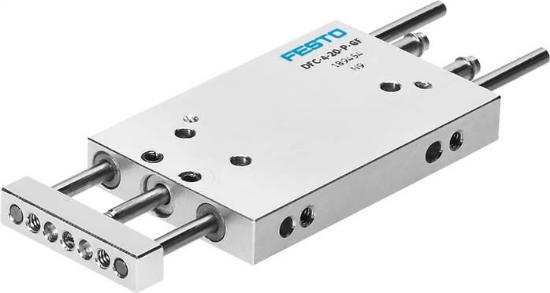

Centre of mass distance of payload to Joch plate [mm]
|
5 |
|
Stroke [mm]
|
20 |
|
Piston diameter
|
4 mm |
|
Operating mode actuator unit
|
Joch |
|
Dampening
|
P: Elastic silencer rings / plates double-sided |
|
installation position
|
arbitrary |
|
Guide
|
sliding guide |
|
Construction set up
|
Guide |
|
Position detection
|
without |
|
Operating pressure [bar]
|
3.5 to 7 |
|
Max. speed [m/s]
|
1 |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
ambient temperature [°C]
|
-5 to 60 |
|
Impact energy at the end positions [J]
|
0,006 |
|
Max. torque Mx [Nm]
|
0,02 |
|
Max. usable load depending on the stroke at a defined distance xs [N]
|
1,7 |
|
Theoretical force at 6 bar, Return flow [N]
|
5,5 |
|
Theoretical force at 6 bar, flow [N]
|
7,5 |
|
Moving mass [g]
|
3,2 |
|
Moving mass at 0 mm stroke [g]
|
3,2 |
|
Product weight [g]
|
17,5 |
|
Supplement moved mass per 10 mm stroke [g]
|
1,3 |
|
Pneumatic connection
|
PK-2 |
|
Cover material
|
Aluminium wrought alloy |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Piston rod material
|
High-alloyed stainless steels |
|
Weight
|
17,5 g / Pcs |
|
GTIN
|
4052568149994 |
|
Customs duty number
|
84123100 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DFC (english) , Data sheet |
