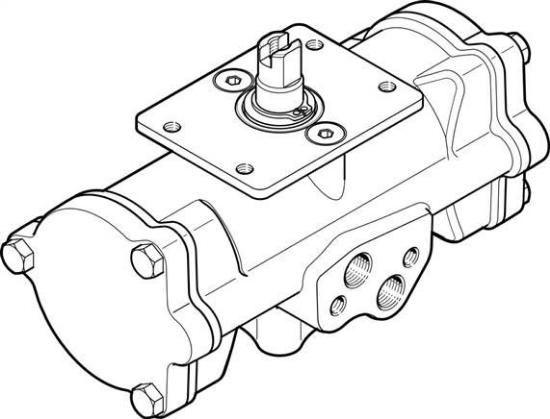

Position drive dimensions
|
0015 |
|
Flange drilling screen
|
F03 |
|
Swivel angle [deg]
|
90 |
|
Shaft connection Depth [mm]
|
10,1 |
|
Dampening
|
No dampening |
|
installation position
|
arbitrary |
|
Principle of operation
|
double acting |
|
Construction set up
|
Joch kinematics |
|
Position detection
|
without |
|
Closing direction
|
Right closing |
|
Safety Integrity Level (SIL)
|
Product can be used in SRP/CS up to SIL 2 Low Demand |
|
Operating pressure [bar]
|
2.5 to 8.4 |
|
Nominal operating pressure [bar]
|
5,6 |
|
ATEX gas category
|
II 2G |
|
Ex ignition protection type gas
|
Ex h IIC T6...T3 Gb X |
|
ATEX dust category
|
II 2D |
|
Ex ignition protection type dust
|
Ex h IIIC T85°C...T200°C Db X |
|
Ex ambient temperature
|
-20°C <= Ta <= +60°C |
|
ambient temperature [°C]
|
-20 to 80 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
CE certificate (see declaration of conformity)
|
to EU EX protection directive (ATEX) |
|
Corrosion resistant class KBK
|
3 - severe corrosion stress |
|
Rotary torque for nominal operating pressure and 0° pivot angle [Nm]
|
15,0 |
|
Rotary torque for nominal operating pressure and 50° pivot angle [Nm]
|
7,5 |
|
Rotary torque for nominal operating pressure and 90° pivot angle [Nm]
|
11,3 |
|
Air consumption a 6 bar per cycle 0°-90°-0° [LTR]
|
0,50 |
|
Product weight [g]
|
800 |
|
Shaft connection
|
V09 |
|
Pneumatic connection
|
G1/8 |
|
Material information
|
RoHs compliant |
|
Cover material
|
High-alloyed stainless steels |
|
Seals material
|
FKM |
|
Housing material
|
High-alloyed stainless steels |
|
Screws material
|
High-alloyed stainless steels |
|
Shaft material
|
High-alloyed stainless steels |
|
Material number shaft
|
1.4301 |
|
Material number cover
|
1.4408 |
|
Material number housing
|
1.4408 |
|
Weight
|
800 g / Pcs |
|
GTIN
|
4052568194628 |
|
Customs duty number
|
84123900 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DAPS (english) , Data sheet |
