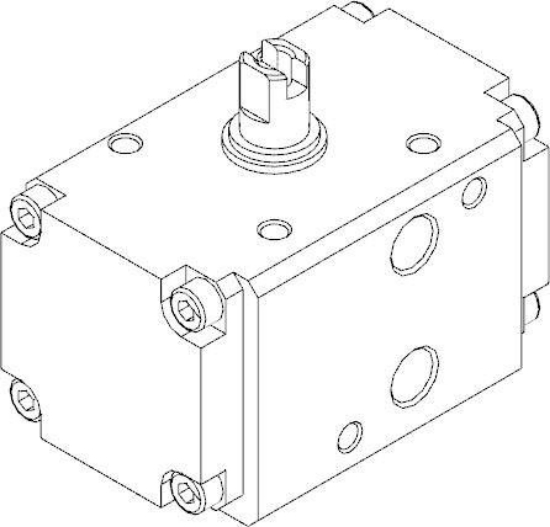

Position drive dimensions
|
0008 |
Flange drilling screen
|
F03 |
Swivel angle [deg]
|
90 |
Shaft connection Depth [mm]
|
10,1 |
Standard connection to fitting
|
ISO 5211 |
Dampening
|
No dampening |
installation position
|
arbitrary |
Principle of operation
|
double acting |
Construction set up
|
Joch kinematics |
Position detection
|
without |
Closing direction
|
Right closing |
Valve connection corresponds to standard
|
VDI/VDE 3845 (NAMUR) |
Safety Integrity Level (SIL)
|
Product can be used in SRP/CS up to SIL 2 Low Demand |
Operating pressure [bar]
|
1 to 8.4 |
Nominal operating pressure [bar]
|
5,6 |
ATEX gas category
|
II 2G |
Ex ignition protection type gas
|
Ex h IIC T6...T3 Gb X |
ATEX dust category
|
II 2D |
Ex ignition protection type dust
|
Ex h IIIC T85°C...T200°C Db X |
Ex ambient temperature
|
-20°C <= Ta <= +60°C |
ambient temperature [°C]
|
-20 to 80 |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
CE certificate (see declaration of conformity)
|
to EU EX protection directive (ATEX) |
Corrosion resistant class KBK
|
3 - severe corrosion stress |
Rotary torque for nominal operating pressure and 0° pivot angle [Nm]
|
7,0 |
Rotary torque for nominal operating pressure and 50° pivot angle [Nm]
|
3,5 |
Rotary torque for nominal operating pressure and 90° pivot angle [Nm]
|
7,0 |
Information about torque
|
The operating torque of the actuator may not be higher than the maximum permitted torque listed in ISO 5211, related to the size of the fastening flange and the coupling. |
Air consumption a 6 bar per cycle 0°-90°-0° [LTR]
|
0,40 |
Product weight [g]
|
300 |
Shaft connection
|
V09 |
Pneumatic connection
|
G1/8 |
Material information
|
RoHs compliant |
Cover material
|
Aluminium wrought alloy |
Seals material
|
FKM |
Housing material
|
Aluminium wrought alloy |
Screws material
|
High-alloyed steel |
Shaft material
|
High-alloyed steel |
Material number shaft
|
1.4305 |
Weight
|
300 g / Pcs |
GTIN
|
4052568191092 |
Customs duty number
|
84123900 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: DAPS (english) , Data sheet |
