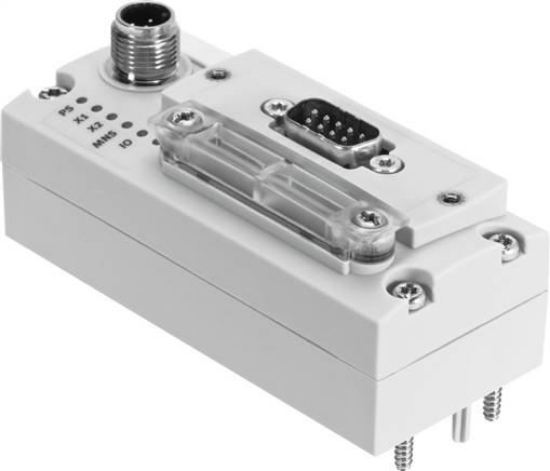

Dimensions W x L x H
|
40 mm x 91 mm x 50 mm |
|
Pitch dimension [mm]
|
40 |
|
Fastening type
|
on electric connection plate |
|
Product weight [g]
|
90 |
|
Report
|
CANopen |
|
Fieldbus interface
|
CAN bus |
|
Fieldbus interface, report
|
CANopen |
|
Fieldbus interface, connection type
|
Plug |
|
Fieldbus interface, connection technology
|
Sub-D |
|
Fieldbus interface, number of pins / wires
|
9 |
|
Fieldbus interface information
|
optional connection technology with accessories: |
|
Fieldbus interface, galvanically separated
|
yes |
|
Fieldbus interface, transfer rate
|
125 kbit/s |
|
Internal cycle time
|
1 ms per 1 byte user data |
|
Max. address volume inputs [Byte]
|
8 |
|
Max. address volume outputs [Byte]
|
8 |
|
Voltage supply, function
|
Electronics and load |
|
Voltage supply, connection type
|
Plug |
|
Voltage supply, connection technology
|
M12x1 B coded to EN 61076-2-101 |
|
Voltage supply, number of poles/wires
|
5 |
|
Diagnosis
|
Unterspannung |
|
Parameterising
|
Failsafe-Reaktion |
|
Additional functions
|
Emergency message |
|
Operating element
|
DIL switch |
|
LED display product specific
|
PS: Operating voltage electronics and load supply |
|
LED display bus specific
|
IO: I/O status |
|
Operating voltage range DC [V]
|
18 to 30 |
|
Nominal operating voltage DC [V]
|
24 |
|
Intrinsic power input at operating voltage
|
Type 65 mA |
|
Max. power supply [A]
|
4 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Protection category
|
IP65 |
|
Information about protection category
|
in assembled condition |
|
ambient temperature [°C]
|
-5 to 50 |
|
Permission
|
RCM mark |
|
Housing material
|
PA |
|
Material information
|
LABS containing materials included |
|
Configuration support
|
EDS file |
|
Information out inputs
|
max. expandable to 16 byte |
|
Information about outputs
|
max. expandable to 16 byte |
|
Weight
|
90 g / Pcs |
|
GTIN
|
4052568216481 |
|
Customs duty number
|
85176200 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CTEU (english) , Data sheet |
