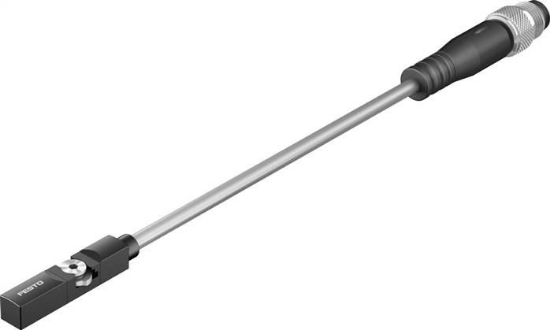

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Material information
|
halogen free |
|
Measurement principle
|
Magnetoresistive |
|
ambient temperature [°C]
|
-40 to 85 |
|
Control output
|
PNP |
|
Switching element function
|
NO contact |
|
Max. output current [mA]
|
100 |
|
Max. switching capacity DC [W]
|
2,8 |
|
Short circuit resistance
|
yes |
|
Overload resistant
|
Available |
|
Operating voltage range DC [V]
|
5 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
Cable with plug |
|
Electrical connection 1, connection technology
|
M8x1, A coded to EN 61076-2-104 |
|
Electrical connection 1, number of pins / wires
|
3 |
|
Connection outlet direction
|
along |
|
Test conditions line
|
Biegewechselfestigkeit nach Festo Norm |
|
Cable length [MTR]
|
0,3 |
|
Line properties
|
Standard+cable track |
|
Cable sleeve material
|
TPE-O |
|
Fastening type
|
Insertable from above into the slot |
|
Housing material
|
PA |
|
Ambient temperature for moving cable placements [°C]
|
-20 to 85 |
|
Protection category
|
IP65 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Design
|
For T-slot |
|
Rated operating voltage DC [V]
|
24 |
|
Product weight [g]
|
16,1 |
|
Switching status indicator
|
LED yellow |
|
Based on standard
|
EN 60947-5-2 |
|
ATEX gas category
|
II 3G |
|
Ex ignition protection type gas
|
Ex nA IIC T4 X Gc |
|
ATEX dust category
|
II 3D |
|
Ex ignition protection type dust
|
Ex tc IIIC T120°C X Dc |
|
Ex ambient temperature
|
-40°C <= Ta <= +85°C |
|
Special features
|
kühlschmiermittelbeständig |
|
Measured parameter
|
Position |
|
Repeatability [mm]
|
0,2 |
|
Switch on time [ms]
|
<= 1 ms |
|
Switch off time [ms]
|
<= 1 ms |
|
Max. switching frequency [hz]
|
180 |
|
Voltage drop [V]
|
< 1,5 V |
|
Minimum load current [mA]
|
0 |
|
Residual current [mA]
|
< 0,05 mA |
|
Cable shield colour
|
#C6C6C6 |
|
Insulation sleeve material
|
PP |
|
Max. tightening torque [Nm]
|
0,6 |
|
installation position
|
arbitrary |
|
Housing colour
|
#000000 |
|
Functional reserve display
|
LED orange |
|
Food compatibility
|
See expanded material information |
|
Plug contacts material
|
brass |
|
Plug housing material
|
PP |
|
Locking nut material
|
Nickel-plated brass |
|
Weight
|
16,1 g / Pcs |
|
Customs duty number
|
85365019 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMT/SME-8 (english) , Data sheet |
