size
|
Standard |
|
Nominal width [mm]
|
5,0 |
|
installation position
|
arbitrary |
|

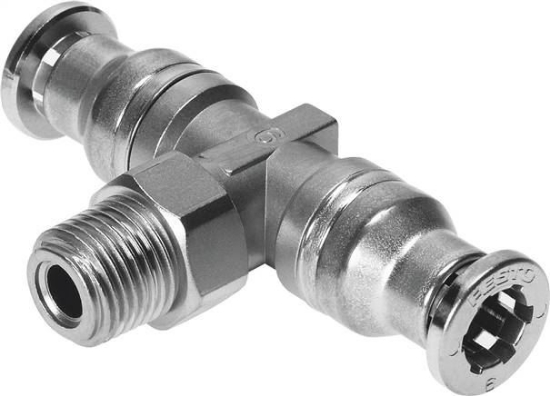

Design
|
T-shape |
|
Packing size
|
1 |
|
Construction set up
|
Push-pull principle |
|
Operating pressure complete temperature range [bar]
|
-0.95 to 10 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Information about operating and control medium
|
Oiled operation possible |
|
Corrosion resistant class KBK
|
4 - particularly severe corrosion stress |
|
Food compatibility
|
See expanded material information |
|
ambient temperature [°C]
|
-15 to 120 |
|
Maritime classification
|
see Certificate |
|
Product weight [g]
|
38,0 |
|
Usable pipelines
|
PFAN |
|
Pneumatic connection 1
|
Male thread R1/4 |
|
Pneumatic connection 2
|
For hose exterior diameter 8 mm |
|
Material information
|
RoHs compliant |
|
Housing material
|
High-alloyed stainless steels |
|
Sleeve material
|
High-alloyed stainless steels |
|
Tube seal, hose seal material
|
FPM |
|
Hose clamping segment material
|
High-alloyed stainless steels |
|
Number of outlets
|
2 |
|
Number of supply lines
|
1 |
|
Fastening type
|
Außensechskant SW14 |
|
Weight
|
38,0 g / Pcs |
|
GTIN
|
4052568073244 |
|
Customs duty number
|
73071990 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CRQS (english) , Data sheet |
