Packing size
|
1 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Food compatibility
|
See expanded material information |
|
ambient temperature [°C]
|
-25 to 70 |
|
Maritime classification
|
see Certificate |
|
Product weight [g]
|
18 |
|
Material information
|
LABS containing materials included |
|
installation position
|
arbitrary |
|
Nominal width [mm]
|
12,70 |
|
Seal type on stud
|
gasket |
|
Construction set up
|
Push-pull principle |
|
Operating pressure complete temperature range [bar]
|
-0.95 to 7 |
|
Temperature depending operating pressure [bar]
|
-0.95 to 15 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Nominal tightening torque [Nm]
|
2,5 |
|
Tolerance to nominal tightening torque
|
± 10 % |
|

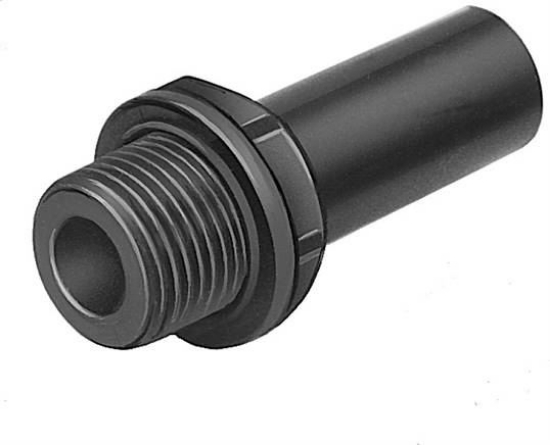

Pneumatic connection 1
|
Male thread G1/2 |
|
Pneumatic connection 2
|
Plug sleeve CQ-18 |
|
Housing material
|
POM |
|
Sleeve material
|
POM |
|
Weight
|
18 g / Pcs |
|
GTIN
|
4052568038588 |
|
Customs duty number
|
39174000 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CQ (english) , Data sheet |
