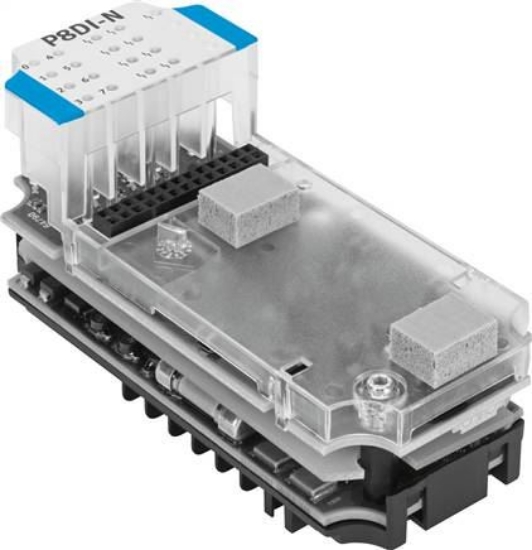

Dimensions W x L x H
|
50 mm x 107 mm x 70 mm |
|
Quantity inputs
|
8 |
|
ATEX gas category
|
II (1) G |
|
Ex ignition protection type gas
|
[Ex ia Ga] IIC |
|
ATEX dust category
|
II (1) D |
|
Ex ignition protection type dust
|
[Ex ia Da] IIIC |
|
Ex protection approval outside of the EU
|
EPL Da (BR) |
|
Ex ambient temperature
|
-5°C <= Ta <= +70°C |
|
Certified awarding point
|
DNV 15.0192 X |
|
CE certificate (see declaration of conformity)
|
to EU EX protection directive (ATEX) |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Relative humidity
|
95 % |
|
Protection category
|
Depends on connection block |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
100 |
|
Fastening type
|
on linking block CPX-M-GE.. |
|
Material information
|
RoHs compliant |
|
Housing material
|
PC |
|
Pitch dimension [mm]
|
50 |
|
Diagnosis
|
Parametrierfehler |
|
Parameterising
|
Datenformat |
|
Reverse polarity protection
|
for operating voltage |
|
Additional functions
|
Frequency measurement |
|
Operating element
|
DIL switch |
|
LED displays
|
1 Sammeldiagnose |
|
Input debouncing time
|
3 ms (0 ms, 10 ms, 20 ms parameterisable) |
|
Fuse (short circuit)
|
Per channel |
|
Intrinsic power input at operating voltage
|
Type 75 mA |
|
Nominal operating voltage DC [V]
|
24 |
|
Power blackout bridging [ms]
|
20 |
|
Potential separation channel - internal bus
|
yes |
|
Potential separation channel - channel
|
no |
|
residual ripple
|
0,4 Vss |
|
Switch level
|
acc. to EN 60947-5-6 |
|
Permitted voltage oscillations
|
± 25 % |
|
Characteristic curves inputs
|
acc. to EN 60947-5-6 |
|
Max. line length
|
200 m |
|
Max. output performance Po [W]
|
0,042 |
|
Max. output voltage Uo [V]
|
10 |
|
Max. output current lo [A]
|
0,0168 |
|
Max. external inductivity Lo []
|
125 |
|
Max. external capacity Co [Nanofarad]
|
3.000 |
|
Weight
|
100 g / Pcs |
|
GTIN
|
4052568213404 |
|
Customs duty number
|
85389091 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet |
