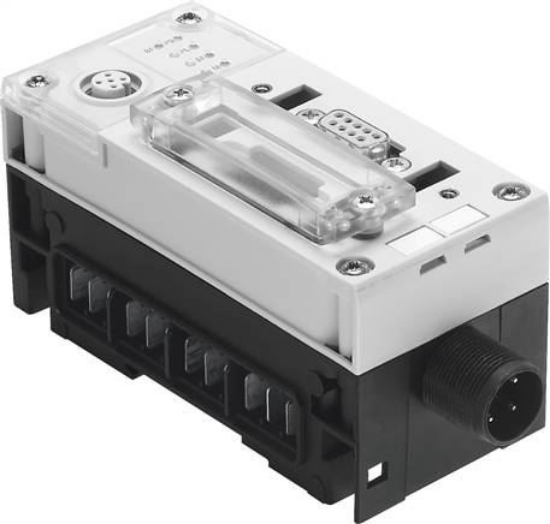

CPX-FB13 (195740) ماژول ارتباط فستو با شبکه پروفیباس
ماژول رابط CPX فستو می تواند برای ارتباط با شبکه پروفیباس صنعتی ارتباط برقرار نماید.
- پروفیباس DP زیمنس (PROFIBUS DP)
The CPX terminal can therefore be operated on over 90% of the most commonly used fieldbus systems:
• PROFIBUS DP
• PROFINET
• INTERBUS
• DeviceNet
• CANopen
• CC-Link
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
Dimensions W x L x H
|
50 mm x 107 mm x 50 mm |
|
Parameterising
|
Systemparameter |
|
Additional functions
|
Start-up parameterisation in text via field bus |
|
Operating element
|
DIL switch |
|
Operating voltage range DC [V]
|
18 to 30 |
|
Intrinsic power input at operating voltage
|
Type 200 mA |
|
Nominal operating voltage DC [V]
|
24 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
115,0 |
|
Max. address volume outputs [Byte]
|
64 |
|
Max. address volume inputs [Byte]
|
64 |
|
Report
|
Profibus DP |
|
Housing material
|
PC |
|
Fieldbus interface
|
2x M12x1, 5 pin, B-coded |
|
Device specific diagnosis
|
Unterspannung Module |
|
Configuration support
|
GSD file |
|
Baud rate
|
96 ... 12000 kBit/s |
|
LED display bus specific
|
BF: Bus error |
|
LED display product specific
|
PL: Load supply |
|
Communication types
|
DPV0: Cyclical communication |
|
Weight
|
115,0 g / Pcs |
|
GTIN
|
4052568006662 |
|
Customs duty number
|
85176200 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CPX (english) , Data sheet |
