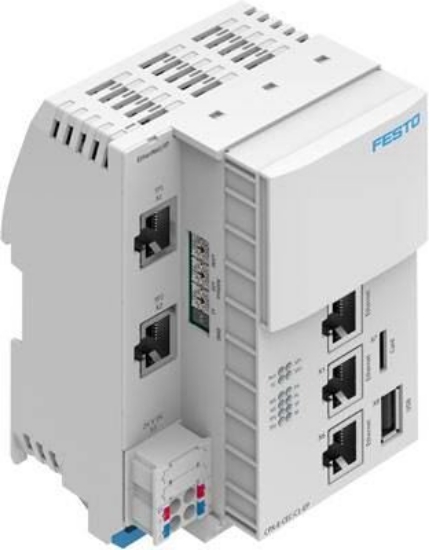

Dimensions W x L x H
|
75.9 mm x 124.3 mm x 82.5 mm |
|
Pitch dimension [mm]
|
18,9 |
|
Diagnosis via LED
|
Force mode |
|
Module parameter
|
Bundling channel alarms |
|
Voltage supply, connection type
|
Multi tube holder |
|
Voltage supply, connection technology
|
Spring tension clamp |
|
Voltage supply, number of poles/wires
|
4 |
|
Voltage supply, conductor cross-section [mm²]
|
0.2 to 1.5 |
|
Voltage supply, information on conductor cross-section
|
0.2 - 2.5 mm² for flexible conductor without wire end sleeve |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Oscillation strength
|
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Relative humidity
|
95 % |
|
Protect against direct and indirect contact
|
Funktionskleinspannung mit sicherer Trennung (PELV) |
|
Protection category
|
IP20 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Information about ambient temperature
|
-5 - 60 °C with vertical installation |
|
Permission
|
RCM mark |
|
Product weight [g]
|
288 |
|
Max. address volume outputs [Byte]
|
64 |
|
Fastening type
|
With Slot rail |
|
Material information
|
LABS containing materials included |
|
Housing material
|
PA |
|
Intrinsic power input operating voltage electronics/sensors
|
Type 150 mA |
|
Nominal operating voltage DC electronics / sensor [V]
|
24 |
|
Permitted voltage oscillations electronics/sensors
|
± 25 % |
|
Max. address volume inputs [Byte]
|
64 |
|
Power blackout bridging [ms]
|
20 |
|
Configuration support
|
CODESYS V3 |
|
Max. number of modules
|
10 |
|
System parameter
|
Diagnosis memory |
|
Operating element
|
DIP-Schalter für RUN/STOP |
|
Max. power supply [A]
|
8 |
|
Voltage supply, function
|
Electronics and sensors |
|
Fieldbus interface, galvanically separated
|
yes |
|
Fieldbus interface, transfer rate
|
100 Mbit/s |
|
Fieldbus interface
|
Ethernet |
|
Fieldbus interface, connection type
|
2x socket |
|
Fieldbus interface, connection technology
|
RJ45 |
|
Fieldbus interface, number of pins / wires
|
8 |
|
Fieldbus interface, report
|
Ethernet / IP |
|
Feldbus-Schnittstelle, Max. Adressvolumen Eingänge [Byte]
|
512 |
|
Feldbus-Schnittstelle, Max. Adressvolumen Ausgänge [Byte]
|
512 |
|
CPU data
|
512 MB RAM |
|
Additional functions
|
CODESYS V3 with SoftMotion |
|
Memory medium
|
Micro SD<= 32 GB |
|
Processing time
|
approx. 200 µs/1 k instruction |
|
Setting IP address
|
DHCP |
|
Functional building block
|
und andere |
|
Marker
|
Variable concept CoDeSys |
|
Programming software
|
CODESYS provided by Festo |
|
Programming memory
|
12 MB user program |
|
USB interface
|
USB 2.0 |
|
Ethernet interface, connection type
|
2x socket |
|
Ethernet interface, connection technology
|
RJ45 |
|
Ethernet interface, number of pins / wires
|
8 |
|
Ethernet interface, transfer speed
|
10 Mbit/s |
|
Ethernet interface, function
|
Switch |
|
Ethernet interface, report
|
EasyIP |
|
Fieldbus interface 2, connection type
|
socket / container / …. |
|
Fieldbus interface 2, connection technology
|
RJ45 |
|
Fieldbus interface 2, number of pins / wires
|
8 |
|
Fieldbus interface 2, function
|
Bus connector forwarding |
|
Fieldbus interface 2, type
|
Ethernet |
|
Fieldbus interface 2, report
|
EtherCAT Master |
|
Fieldbus interface 2, galvanically separated
|
yes |
|
Fieldbus interface 2, transfer rate
|
100 Mbit/s |
|
Weight
|
288 g / Pcs |
|
Customs duty number
|
85371091 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CPX-E (english) , Data sheet |
