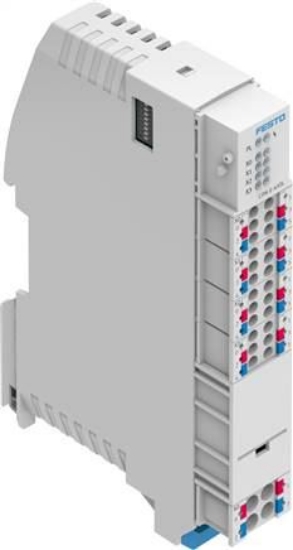

Dimensions W x L x H
|
18.9 mm x 76.6 mm x 124.3 mm |
|
Pitch dimension [mm]
|
18,9 |
|
Diagnosis via LED
|
Error per module |
|
Diagnosis via bus
|
Under-voltage |
|
Module parameter
|
Diagnosis short circuit actuator supply |
|
Channel parameter
|
Deactivate actuator supply |
|
Fuse (short circuit)
|
internal electronic fuse, load per channel |
|
Intrinsic power input operating voltage load
|
Type 15 mA |
|
Nominal operating voltage DC outputs [V]
|
24 |
|
Potential separation channel - internal bus
|
no |
|
Potential separation channel - channel
|
no |
|
Permitted voltage oscillations outputs
|
± 25 % |
|
Voltage supply, connection type
|
Multi tube holder |
|
Voltage supply, connection technology
|
Spring tension clamp |
|
Voltage supply, number of poles/wires
|
4 |
|
Voltage supply, conductor cross-section [mm²]
|
0.2 to 1.5 |
|
Voltage supply, information on conductor cross-section
|
0.2 - 2.5 mm² for flexible conductor without wire end sleeve |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Oscillation strength
|
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Relative humidity
|
95 % |
|
Protect against direct and indirect contact
|
Funktionskleinspannung mit sicherer Trennung (PELV) |
|
Protection category
|
IP20 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Information about ambient temperature
|
-5 - 50 °C with horizontal installation |
|
Permission
|
RCM mark |
|
Product weight [g]
|
96 |
|
Fastening type
|
With Slot rail |
|
Material information
|
LABS containing materials included |
|
Housing material
|
PA |
|
Intrinsic power input operating voltage electronics/sensors
|
Type 50 mA |
|
Nominal operating voltage DC electronics / sensor [V]
|
24 |
|
Permitted voltage oscillations electronics/sensors
|
± 25 % |
|
Report
|
IO-Link |
|
IO-Link, report
|
Master V 1.1 |
|
IO-Link, communication mode
|
configurable using software |
|
IO-Link, port type
|
B |
|
IO-Link, number of ports
|
4 |
|
IO-Link, process data width OUT
|
Parameterisable 8 - 32 Bytes |
|
IO-Link, process data width IN
|
Parameterisable 8 - 32 Bytes |
|
IO-Link, minimum cycle time
|
Depends on minimum supported cycle time of the connected IO link devices |
|
IO-Link, communication
|
C/Q LED green |
|
Electrical connection IO link, connection type
|
4x multi tube holder |
|
Electrical connection IO link, connection technology
|
Spring tension clamp |
|
Electrical connection IO link, number of pins / wires
|
6 |
|
Electrical connection IO link, conductor cross-section [mm²]
|
0.2 to 1.5 |
|
Electrical connection IO link, information on conductor cross-section
|
0.2 - 2.5 mm² for flexible conductor without wire end sleeve |
|
Weight
|
96 g / Pcs |
|
GTIN
|
4052568291150 |
|
Customs duty number
|
85389099 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CPX-E (english) , Data sheet |
