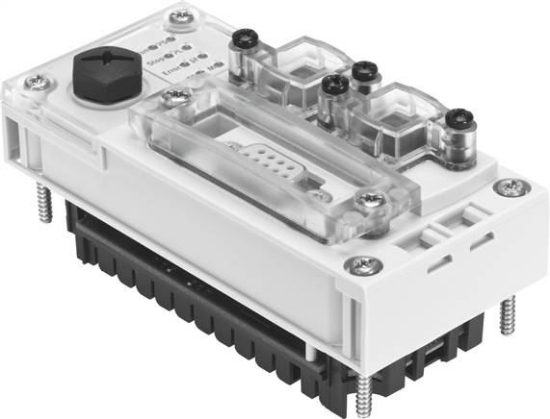

Dimensions W x L x H
|
50 mm x 107 mm x 55 mm |
|
Parameterising
|
CODESYS V2.3 |
|
Additional functions
|
Diagnose functions |
|
Operating element
|
Rotary switch for RUN/Stop |
|
Intrinsic power input at operating voltage
|
type 85 mA |
|
Nominal operating voltage DC [V]
|
24 |
|
Power blackout bridging [ms]
|
10 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
155,0 |
|
Report
|
CODESYS Level 2 |
|
Material information
|
RoHs compliant |
|
Housing material
|
PC |
|
Device specific diagnosis
|
Diagnose-Speicher |
|
Configuration support
|
CODESYS V2.3 |
|
Baud rate
|
10/100 Bit/s acc. to IEEE 802.3 (10BaseT) or 802.3u (100BaseTx) |
|
LED display bus specific
|
TP: Link / traffic |
|
LED display product specific
|
ERR: Runtime error PLC |
|
CPU data
|
32 MB flash |
|
Programming, operating language
|
DE, EN |
|
Programming, support file handling
|
yes |
|
Processing time
|
approx. 200 µs/1 k instruction |
|
Data interface
|
9.6 ... 230.4 kBit/s |
|
Setting IP address
|
DHCP |
|
Functional building block
|
CPX diagnosis status |
|
Marker
|
30 kB residual data |
|
Nominal operating voltage DC load voltage
|
24 V |
|
Programming software
|
CODESYS provided by Festo V2.3 |
|
Programming language
|
Instruction list (AWL) |
|
Programming memory
|
4 MB user program |
|
Relative humidity
|
95 % |
|
Ethernet, number
|
1 |
|
Ethernet, data transfer speed
|
10/100 Mbit/s |
|
Ethernet supported protocols
|
TCP/IP, EasyIP, Modbus TCP |
|
Ethernet, connection plug
|
RJ45 |
|
Ethernet interface
|
RJ 45 (jack, 8-pin) |
|
Weight
|
155,0 g / Pcs |
|
GTIN
|
4052568215071 |
|
Customs duty number
|
85371091 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CPX-CEC (english) , Data sheet |
