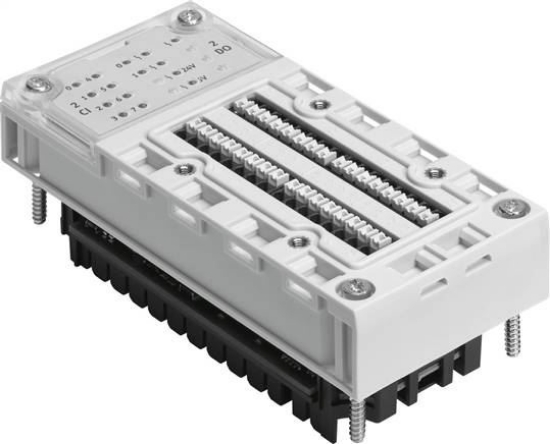

Dimensions W x L x H
|
50 mm x 107 mm x 50 mm |
|
Diagnosis
|
betriebsartenabhängige Diagnose |
|
Parameterising
|
Input / output switching delay |
|
LED displays
|
1 Sammeldiagnose |
|
Operating voltage range DC [V]
|
18 to 30 |
|
Intrinsic power input at operating voltage
|
Type 35 mA |
|
Max. power supply per channel
|
5 A adjustable (20 W lamp test) |
|
Nominal operating voltage DC [V]
|
24 |
|
Potential separation channel - internal bus
|
Outputs - yes, when using intermediate power supply |
|
Potential separation channel - channel
|
no |
|
Corrosion resistant class KBK
|
(In integrated condition) |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Protection category
|
IP67 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
130,0 |
|
Max. line length
|
30 m |
|
Material information
|
RoHs compliant |
|
Housing material
|
Plastic |
|
Quantity inputs
|
2 |
|
Input debouncing time
|
0.1 µs (0.2µs,0.4µs,0.8µs,1µs,2µs,4µs,8µs,10µs,50µs,100µs,500µs,1ms,3ms,10ms,20ms parameterisable) |
|
Fuse (short circuit)
|
Internal electronic fuse Per channel |
|
Max. cumulative current inputs per module [A]
|
2,0 |
|
Switch level
|
Signal 0: <= 5 V |
|
Characteristic curves inputs
|
to IEC 1131-2 type 02 |
|
Switching logic inputs
|
PNP (Positive switching) |
|
Quantity outputs:
|
2 |
|
Max. cumulative current outputs per module [A]
|
10,0 |
|
Characteristic curves outputs
|
IEC1131-T2 |
|
Switching logic outputs
|
PNP (Positive switching) |
|
Permission
|
UL - recognised (OL) |
|
Pitch dimension [mm]
|
50 |
|
Weight
|
130,0 g / Pcs |
|
Customs duty number
|
85389091 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CPX (english) , Data sheet |
