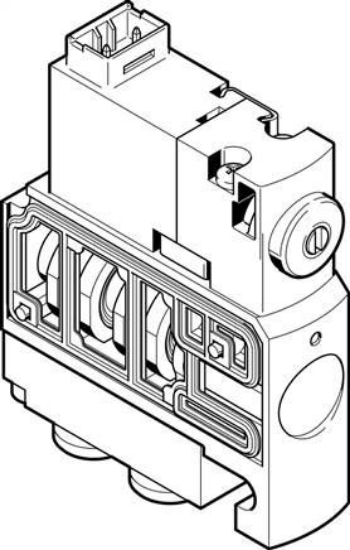

Valve function
|
2/2 closed monostable |
Actuation type
|
Electrical |
Valve size [mm]
|
10 |
Normal nominal flow [l/min]
|
150 |
Operating pressure [bar]
|
-0.9 to 7 |
Construction set up
|
Piston pusher |
Reset mode
|
Pneumatic spring |
Protection category
|
IP40 |
Exhaust function
|
Cannot be throttled |
Sealing principle
|
Soft |
installation position
|
arbitrary |
Hand assist actuation
|
Ratcheting |
Control type
|
pilot operated |
Control air supply
|
external |
Flow direction
|
Not reversible |
Control pressure [bar]
|
3 to 7 |
Shifting time off [ms]
|
10 |
Shifting time on [ms]
|
10 |
Max. positive test impulse at 0 signal [Mikrosekun]
|
500 |
Max. negative test impulse for 1 signal [Mikrosekun]
|
400 |
Coil characteristic value
|
24 V DC: 1 W |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
Corrosion resistant class KBK
|
1 - low corrosion stress |
ambient temperature [°C]
|
-5 to 50 |
Product weight [g]
|
30,5 |
electrical connection:
|
2 pin |
Fastening type
|
With throughway bores |
Exhaust control connection 82/84
|
Hunt group |
Pneumatic connection 1
|
Hunt group |
Pneumatic connection 2
|
QS-4 |
Pneumatic connection 3/5 combined
|
Hunt group |
Pneumatic connection 4
|
QS-4 |
Material information
|
RoHs compliant |
Seals material
|
NBR |
Housing material
|
Aluminium die casting |
Medium temperature [°C]
|
-5 to 50 |
Weight
|
30,5 g / Pcs |
GTIN
|
4052568187743 |
Customs duty number
|
84812090 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: Valve terminal CPV-SC, Smart Cubic (english) , Data sheet |
