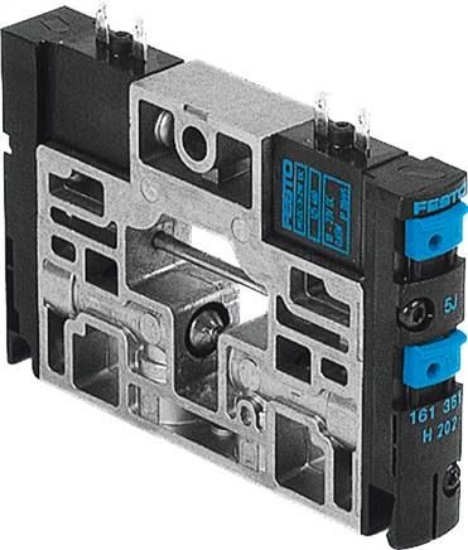

Valve function
|
2x2/2 closed monostable |
|
Actuation type
|
Electrical |
|
Valve size [mm]
|
14 |
|
Normal nominal flow [l/min]
|
800 |
|
Operating pressure [bar]
|
-0.9 to 10 |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Pneumatic spring |
|
Protection category
|
IP65 |
|
Nominal width [mm]
|
6 |
|
Exhaust function
|
Cannot be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
Ratcheting |
|
Control type
|
pilot operated |
|
Control air supply
|
external |
|
Flow direction
|
Not reversible |
|
Coverage
|
positive Überdeckung |
|
Control pressure [bar]
|
3 to 8 |
|
b-value
|
0.37 |
|
C-value []
|
3,20 |
|
Shifting time off [ms]
|
16 |
|
Shifting time on [ms]
|
13,0 |
|
Power-on time
|
100% with holding current reduction |
|
Electrical power consumption [W]
|
0,65 |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
1.400 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
400 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 40 |
|
Medium temperature [°C]
|
-5 to 50 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
120 |
|
Fastening type
|
With throughway bores |
|
Support air control connection 12/14
|
Hunt group |
|
Exhaust control connection 82/84
|
Hunt group |
|
Pneumatic connection 1
|
Hunt group with pressure separation |
|
Pneumatic connection 2
|
G1/8 |
|
Pneumatic connection 3/5 combined
|
Hunt group |
|
Pneumatic connection 4
|
G1/8 |
|
Material information
|
RoHs compliant |
|
Seals material
|
HNBR |
|
Housing material
|
POM |
|
Pneumatic connection 11
|
Hunt group with pressure separation |
|
Weight
|
120 g / Pcs |
|
GTIN
|
4052568206284 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal CPV, Compact Performance (english) , Data sheet |
