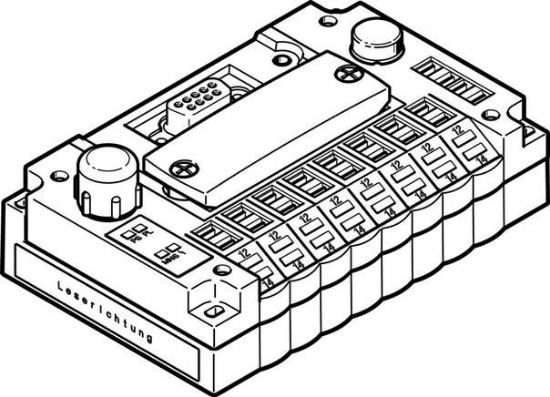

Reverse polarity protection
|
for all electrical connections |
|
Baud rate
|
9.6 kBaud ... 12 Mbaud |
|
Nominal operating voltage DC [V]
|
24 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-5 to 50 |
|
LED display bus specific
|
BUS: Communication and configuration error |
|
LED display product specific
|
12/14: Valve switching status |
|
Cover material
|
PA reinforced |
|
Material information
|
RoHs compliant |
|
CP strand expansion
|
32 outputs |
|
Fieldbus interface
|
wahlweise: |
|
Device specific diagnosis
|
Missing module on the CP strand expansion |
|
Communication types
|
Cyclical communication |
|
Configuration support
|
GSD file and bitmaps |
|
Max. number of valve coils with strand expansion
|
48 |
|
Max. number of valve coils
|
16 |
|
Operating voltage range DC [V]
|
20.4 to 26.4 |
|
Max. number of outputs
|
16 valve coils and 32 outputs |
|
Max. number of inputs
|
32 |
|
Power blackout bridging [ms]
|
10 |
|
residual ripple
|
4 Vss |
|
Power input in nominal operating voltage load
|
Valve type dependent |
|
Power input in nominal operating voltage
|
Sensor supply: Sensor dependent |
|
Permission
|
c UL us - Recognized (OL) |
|
Addressing area
|
1 ... 125 |
|
Fieldbus certification
|
PNO |
|
Galvanic separation fieldbus interface
|
Opto-coupler |
|
Product identification
|
Product family: 4: Valve |
|
Seals material
|
CR |
|
Housing material
|
Aluminium die casting |
|
Weight
|
350 g / Pcs |
|
GTIN
|
4052568184575 |
|
Customs duty number
|
85371098 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Fieldbus Direct (english) , Data sheet |
