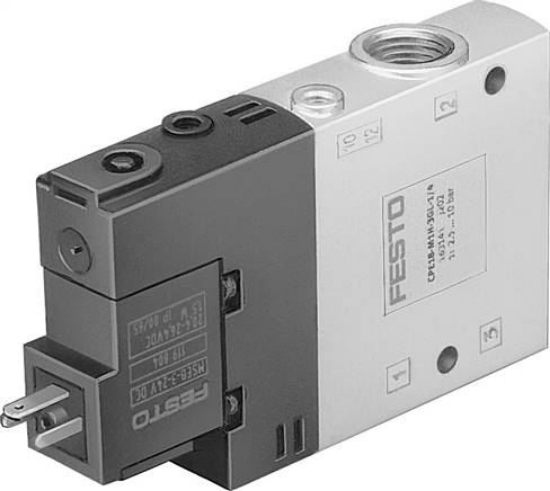

CPE18-M1H-3GLS-1/4 (163145) شیر برقی پنوماتیک فستو

CPE18-M1H-3GLS-1/4 (163145) شیر برقی پنوماتیک فستو

شیر های 3 به 2 راه با پایلوت اکسترنال

نرمالی کلوز

شیر سلنوئید 5 به 2 مسیر با پایلوت داخلی

جریان هوا از 180 تا 3200 لیتر بر دقیقه

CPE18-M1H-3GLS-1/4 شیر برقی پنوماتیک فستو سری کامپکت می باشد.

مشاهده دیگر محصولات سری CPE

visit this product in festo website

Solenoid valves CPE, Compact Performance
Key features
Variants Parameters Advantages
Functions (selection)
3/2-way valve with external pilot air supply,
normally closed
5/2-way single solenoid valve with
internal pilot air supply
-K- Width
10 mm
14 mm
18 mm
24 mm
-M- Flow rate
180 … 3200 l/min
Performance-optimised sizes:
The solenoid valves CPE, Compact
Performance are distinguished by
their minimal width and low power
consumption at high flow rates.
They can be mounted directly on site:
– On the cylinder
– On moving system components
– Flexible installation through
individual mounting
Short tubing lengths requiring
minimal air volume:
 Short switching times
 Short response times
Optimised installations:
 Shorter machine cycles
 Larger quantities
 Lower power consumption
Convenient manual override.
5/2-way double solenoid valve with
external pilot air supply
5/3-way valve with external pilot air supply,
normally closed
-H- Note
The 5/3-way solenoid valve remains
in the previous switching position if
both solenoid coils are energised
simultaneously.
If neither solenoid coil is energised,
the spring force moves the valve to
its mid-position.
CPE10, CPE14 and CPE18:
Simple manifold structure consisting
of fixed-grid manifold blocks made
from stable aluminium with 2 to 10
valve positions or modular manifold
blocks made from durable plastic.
The connecting cables NEBV for sizes
CPE10 and CPE14 feature integrated
current reduction.
All CPE valves therefore have a duty
cycle of 100%.
