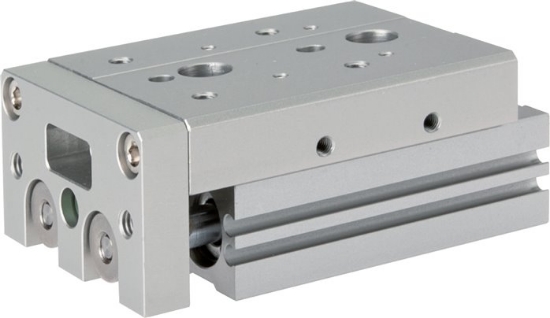

Materials:
Body and plate: Anodised aluminium, piston rods: Stainless steel, piston: Aluminium with magnet insertion, seals: NBR
Temperature range:
-10°C to +60°C
Operating pressure:
1,5 - 7 bar
Piston speed
50 - 500 mm/s
Version:
With Magnetic piston
Optional:
Stroke limiter extension side
, Stroke limiter retraction side
, Stroke limiter on both sides
, Shock absorber extension side
, Shock absorber retraction side
, Shock absorber on both sides
Cylinder switch type:
D
Advantages:
•high stiffness,
•numerous mounting options,
•Positioning holes for repeatable workpiece installation,
•main mounting dimensions identical to SMC series MXS
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
Version
|
Stroke limiter on both sides |
|
Piston Ø [mm]
|
8 |
|
Stroke [mm]
|
30 |
|
Repair sets
|
ELS 8 REP |
|
A [mm]
|
40 |
|
B [mm]
|
37 |
|
BA [mm]
|
15 |
|
BB [mm]
|
6,5 |
|
BC [mm]
|
3,5 |
|
BD
|
M 3 (4 deep) |
|
C [mm]
|
24 |
|
CA [mm]
|
22,0 |
|
F [mm]
|
40 |
|
FA [mm]
|
23 |
|
FB [mm]
|
12 |
|
FC (+0.03 / -0.2) [mm]
|
3 (3.0 deep) |
|
FD [mm]
|
4 |
|
FE
|
M 3 (5.0 deep) |
|
FF [mm]
|
40 |
|
G
|
M 5 |
|
H [mm]
|
20 |
|
HA [mm]
|
20 |
|
HB [mm]
|
33 |
|
HC [mm]
|
13 |
|
HE
|
M 4 (8 deep) |
|
HF [mm]
|
3,2 |
|
KA [mm]
|
30 |
|
KB [mm]
|
12 |
|
KC
|
M 4 (6 deep) |
|
L [mm]
|
13,5 |
|
LA [mm]
|
8 |
|
LB [mm]
|
16,0 |
|
LC [mm]
|
6,5 |
|
LD [mm]
|
14,6 |
|
LE [mm]
|
7,0 |
|
LF [mm]
|
3,8 |
|
LG [mm]
|
7,0 |
|
LH [mm]
|
7,0 |
|
LJ [mm]
|
2 |
|
LK [mm]
|
3,50 |
|
LM [mm]
|
4 |
|
LN [mm]
|
6,5 |
|
LO
|
M 3 (4.5 deep) |
|
LP
|
M 3 (6.0 deep) |
|
M [mm]
|
65 |
|
MA [mm]
|
6 |
|
N
|
4x |
|
N1
|
3x |
|
N2
|
4x |
|
Z [mm]
|
64,5 |
|
ZA [mm]
|
7,5 |
|
Weight
|
240 g / Pcs |
|
GTIN
|
4050571877774 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
EMC |
|
Document
|
Catalogue page Atlas 9, Data sheet |
