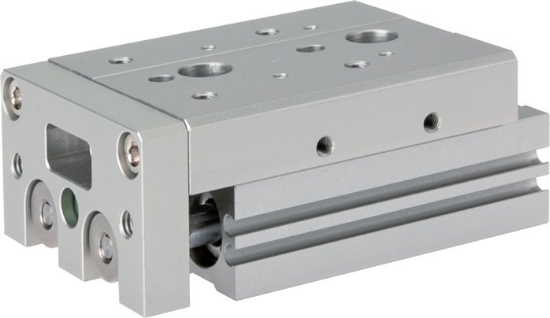

Materials:
Body and plate: Anodised aluminium, piston rods: Stainless steel, piston: Aluminium with magnet insertion, seals: NBR
Temperature range:
-10°C to +60°C
Operating pressure:
1,5 - 7 bar
Piston speed
50 - 500 mm/s
Version:
With Magnetic piston
Optional:
Stroke limiter extension side
, Stroke limiter retraction side
, Stroke limiter on both sides
, Shock absorber extension side
, Shock absorber retraction side
, Shock absorber on both sides
Cylinder switch type:
D
Advantages:
•high stiffness,
•numerous mounting options,
•Positioning holes for repeatable workpiece installation,
•main mounting dimensions identical to SMC series MXS
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
Version
|
Shock absorbers retraction side |
|
Piston Ø [mm]
|
16 |
|
Stroke [mm]
|
10 |
|
Repair sets
|
ELS 16 REP |
|
A [mm]
|
62 |
|
B [mm]
|
58 |
|
BA [mm]
|
26 |
|
BB [mm]
|
12,0 |
|
BC [mm]
|
6,0 |
|
BD
|
M 5 (7 deep) |
|
C [mm]
|
40 |
|
CA [mm]
|
36,5 |
|
F [mm]
|
35 |
|
FA [mm]
|
35 |
|
FB [mm]
|
21 |
|
FC (+0.03 / -0.2) [mm]
|
5 (4.0 deep) |
|
FD [mm]
|
6 |
|
FE
|
M 5 (6.0 deep) |
|
FF [mm]
|
35 |
|
G
|
M 5 |
|
H [mm]
|
40 |
|
HA [mm]
|
40 |
|
HB [mm]
|
16 |
|
HC [mm]
|
16 |
|
HE
|
M 6 (12 deep) |
|
HF [mm]
|
5,1 |
|
KA [mm]
|
48 |
|
KB [mm]
|
20 |
|
KC
|
M 6 (10 deep) |
|
L [mm]
|
19,0 |
|
LA [mm]
|
8 |
|
LB [mm]
|
24,0 |
|
LC [mm]
|
12,0 |
|
LD [mm]
|
21,0 |
|
LE [mm]
|
10,0 |
|
LF [mm]
|
5,5 |
|
LG [mm]
|
9,5 |
|
LH [mm]
|
11,0 |
|
LJ [mm]
|
3 |
|
LK [mm]
|
5,50 |
|
LM [mm]
|
6 |
|
LN [mm]
|
12,0 |
|
LO
|
M 5 (6.5 deep) |
|
LP
|
M 5 (5.5 deep) |
|
M [mm]
|
76 |
|
MA [mm]
|
10 |
|
N
|
4x |
|
N1
|
2x |
|
N2
|
4x |
|
Z [mm]
|
75,0 |
|
ZA [mm]
|
12,0 |
|
Weight
|
650 g / Pcs |
|
GTIN
|
4050571876869 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
EMC |
|
Document
|
Catalogue page Atlas 9, Data sheet |
