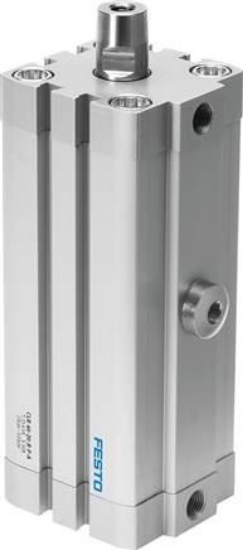

Total stroke [mm]
|
43 |
|
Piston diameter
|
63 mm |
|
Piston rod thread
|
M10 |
|
Swivel angle
|
90 deg ± 2 deg |
|
Clamping stroke [mm]
|
20 |
|
Dampening
|
P: Elastic silencer rings / plates double-sided |
|
installation position
|
arbitrary |
|
Construction set up
|
Piston |
|
Position detection
|
For proximity switch |
|
Swivel direction
|
Right |
|
Operating pressure [bar]
|
2 to 10 |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
ambient temperature [°C]
|
-10 to 80 |
|
Effective clamping strength at 2 bar [N]
|
441 |
|
Effective clamping strength at 4 bar [N]
|
823 |
|
Effective clamping strength at 6 bar [N]
|
1.386 |
|
Max. tightening torque Clamping finger screw [Nm]
|
47,0 |
|
Theoretical clamping strength at 6 bar [N]
|
1.682 |
|
Product weight [g]
|
2.100 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection
|
G1/8 |
|
Flush screw material
|
Steel |
|
Cover material
|
Aluminium wrought alloy |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Piston rod material
|
High-alloyed stainless steels |
|
Cylinder tube material
|
Aluminium wrought alloy |
|
Weight
|
2.100 g / Pcs |
|
GTIN
|
4052568168933 |
|
Customs duty number
|
84123100 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CLR (english) , Data sheet |
