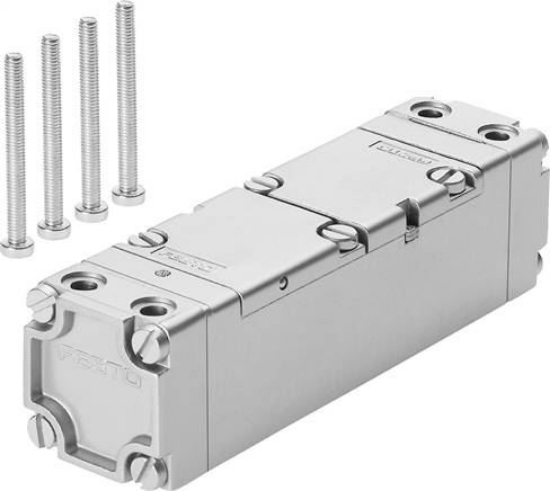

Valve function
|
5/2 bistable |
|
Actuation type
|
pneumatic |
|
Normal nominal flow [l/min]
|
1.400 |
|
Operating pressure [bar]
|
1 to 16 |
|
Nominal width [mm]
|
6,5 |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
tentative |
|
Control pressure [bar]
|
2 to 10 |
|
Max. switching frequency [hz]
|
40 |
|
Shifting time on [ms]
|
28 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Medium temperature [°C]
|
-10 to 60 |
|
Fastening type
|
on connection plate |
|
Control air 12 connection
|
G1/8 |
|
Control air 14 connection
|
G1/8 |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Pneumatic connection 3
|
G1/4 |
|
Pneumatic connection 4
|
G1/4 |
|
Pneumatic connection 5
|
G1/4 |
|
Material information
|
LABS containing materials included |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Diaphragm material
|
PUR |
|
Weight
|
290 g / Pcs |
|
GTIN
|
4052568110710 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet |
