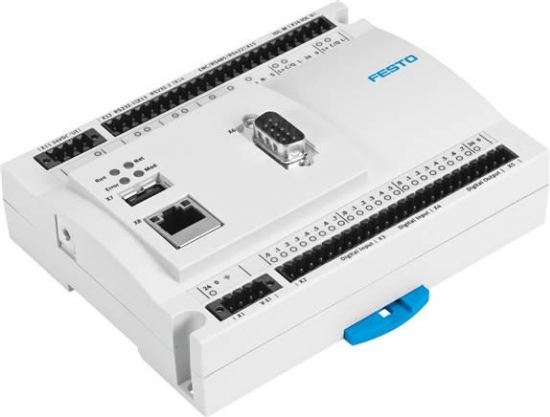

Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Permission
|
RCM mark |
|
Material information
|
RoHs compliant |
|
Nominal operating voltage DC [V]
|
24 |
|
Operating voltage
|
20.4 - 30 VDC |
|
Power input
|
100 mA nominal at 24 VDC |
|
Max. power supply [A]
|
6,0 |
|
ambient temperature [°C]
|
0 to 55 |
|
Bearing temperature [°C]
|
-25 to 70 |
|
Relative humidity
|
95 % |
|
Protection category
|
IP20 |
|
Protection class
|
III |
|
Product weight [g]
|
200 |
|
Insensitivity test to vibrations
|
according to EN 61131-2 |
|
Insensitivity test to shock
|
according to EN 61131-2 |
|
Electrical connection technology I/O
|
Bushing strip, pitch 3.5 mm |
|
Status displays
|
LED |
|
CPU data
|
Processor 400 MHz |
|
Digital inputs, quantity
|
12 |
|
Digital inputs, switching logic
|
Positive logic (PNP) |
|
Digital inputs, quick number inputs
|
2, However max. 180 kHz |
|
Digital inputs, input signal delay
|
3 ms type |
|
Digital inputs, input voltage / current
|
24 VDC |
|
Digital inputs, nominal value for TRUE
|
>= 15 VDC |
|
Digital inputs, nominal value for FALSE
|
<= 5 VDC |
|
Digital inputs, potential separation
|
Yes, opto coupler |
|
Digital inputs, status display
|
LED |
|
Digital inputs, permitted length of connection line [MTR]
|
30 |
|
Digital outputs, quantity
|
8 |
|
Digital outputs, switching logic
|
Positive logic (PNP) |
|
Digital outputs, contact
|
Transistor |
|
Digital outputs, output voltage
|
24 VDC |
|
Digital outputs, output current
|
500 mA |
|
Digital outputs, potential separation
|
Yes, opto coupler |
|
Digital outputs, switching frequency
|
max. 1 kHz |
|
Digital outputs, short circuit proof
|
yes |
|
Digital outputs, status display
|
LED |
|
Report
|
CANopen |
|
Fieldbus interface
|
CAN bus |
|
Fieldbus interface, connection technology
|
Sub-D |
|
Fieldbus interface, transfer rate
|
125, 250, 500, 800, 1000kbit/s |
|
Fieldbus interface, galvanically separated
|
yes |
|
USB interface
|
USB 1.1 |
|
Ethernet, connection plug
|
RJ45 |
|
Ethernet, number
|
1 |
|
Ethernet, data transfer speed
|
10/100 Mbit/s |
|
Ethernet supported protocols
|
TCP/IP, EasyIP, Modbus TCP |
|
Programming software
|
CODESYS provided by Festo V3 |
|
Programming language
|
Instruction list (AWL) |
|
Certified awarding point
|
UL E239998-D1001 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Serial interface, quantity
|
3 |
|
Serial interface, type
|
2 x RS232 / 1 x RS 485-A/422-A |
|
Serial interface, connection technology
|
Plug |
|
Serial interface, transfer rate
|
300 ... 375000 Bit/s |
|
IO-Link, report
|
Device V 1.0 |
|
IO-Link, communication mode
|
configurable using software |
|
IO-Link, port type
|
Device A |
|
IO-Link, number of ports
|
Device 1 |
|
IO-Link, process data width OUT
|
Master parameterisable, 2-32 Byte |
|
IO-Link, process data width IN
|
Master parameterisable, 2-32 Byte |
|
IO-Link, minimum cycle time
|
Device 3,2 ms |
|
IO link, storage
|
2 kByte / port |
|
IO-Link Master, output current
|
3.5 A / port |
|
IO-Link, connection technology
|
Cage Clamp |
|
IO-Link, communication
|
C/Q LED green |
|
IO-Link, operation-readiness display
|
L+ LED green on |
|
Encoder inputs, quantity
|
1 |
|
Encoder inputs, resolution
|
32 Bit |
|
Encoder inputs, signal range
|
5 V differential (RS422) |
|
Encoder inputs, max. input frequency [kHz]
|
1.000 |
|
Encoder inputs, sensor supply voltage
|
5 VDC (100 mA) |
|
Weight
|
200 g / Pcs |
|
GTIN
|
4052568223076 |
|
Customs duty number
|
85371091 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CECC (english) , Data sheet |
