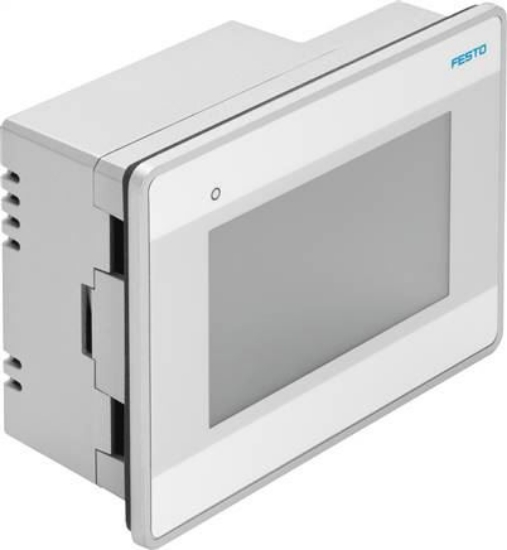

CDPX-X-A-W-4 (574410) واحد اپراتور فستو

کد سفارش تولید کننده: 574410
مشخصات
عنوان ویژگی مقدار ویژگی
CE certificate (see declaration of conformity) to EU EMC directive
Bearing temperature [°C] -20 to 70
Protection category IP65 front-side, IP20 rear side
ambient temperature [°C] 0 to 50
Permission C-tick
Material information RoHs compliant
Operating voltage range DC [V] 18 to 30
Nominal operating voltage DC [V] 24
Product weight [g] 1.000
Integration depth [mm] 56
Height [mm] 107
Length [mm] 147
Max. panel front thickness [mm] 4
Realtime clock yes
Event lists 2048
Recipe memory [Byte] 32.000
Sides 1000
Tags 10000
Widget 2000
Objects on one screen 2000
User 50
Simultaneous client access 4
Trend buffer 30
Curves per trend widget 5
Recipes 32
Parameter sets per recipe 32000
Event buffer 4
Events per event buffer 2048
Alarms 2000
Javascript file size per screen [Byte] 8.000
Project size 30
Scheduler 30
Supported PLC protocols CODESYS 3.X
Deviation realtime clock 130 s / month
Quantity system LEDs 1
Display TFT colour
Display properties Touch screen
Display size 4.3"
Back-up battery Li battery, rechargeable
Display resolution 480x272 pixels
Power input in nominal operating voltage 0.4 A
Relative humidity 5 - 85 %
PLC interface Ethernet
USB interface yes
SD card slot 1
Ethernet interface RJ45 10/100 MBd
Fastening type Front panel integration
Programming software Designer Studio
Weight 1.000 g / Pcs
GTIN 4052568223021
Customs duty number 85371098
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: CDPX (english) Data sheet
