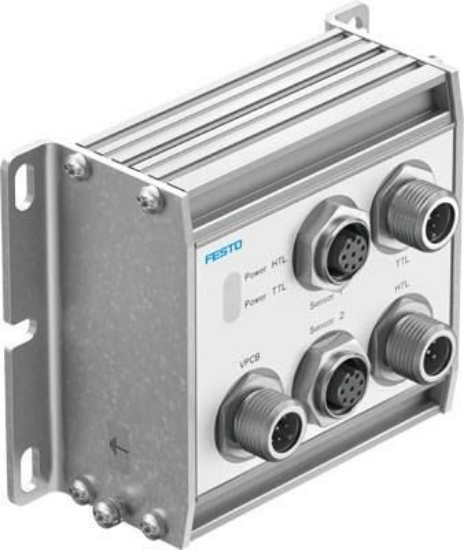

Diagnose function
|
Display via LED |
|
installation position
|
arbitrary |
|
Nominal operating voltage DC [V]
|
24 |
|
residual ripple
|
5 % |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
350 |
|
Fastening type
|
mit Durchgangsbohrung für Schraube M4 |
|
Housing material
|
Aluminium wrought alloy, anodised |
|
User information
|
Das Produkt ist ausschließlich für industrielle Zwecke geeignet. In Wohnbereichen müssen eventuell Maßnahmen zur Funkentstörung getroffen werden. |
|
Reverse polarity protection
|
yes |
|
Output frequency
|
HTL-Signal: max. 450 Hz |
|
Operating voltage range DC [V]
|
20.4 to 30 |
|
Power-on time
|
100 % |
|
Max. electrical power consumption [W]
|
6 |
|
Power input for unloaded outputs [mA]
|
50 |
|
Current carrying capacity per output [mA]
|
50 |
|
KC-mark
|
KC-EMV |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Protect against direct and indirect contact
|
Funktionskleinspannung mit sicherer Trennung (PELV) |
|
Information about protection category
|
In mounted condition |
|
Signal range
|
HTL-Signal: High: min. 18 V, Low: max. 2 V |
|
Electrical connection: outlet, function
|
TTL |
|
Electrical connection: outlet, connection type
|
Plug |
|
Electrical connection: outlet, connection technology
|
M12x1 A coded to EN 61076-2-101 |
|
Electrical connection: outlet, number of pins / wires
|
8 |
|
Electrical connection: outlet 2, function
|
HTL |
|
Electrical connection: outlet 2, connection type
|
Plug |
|
Electrical connection: outlet 2, connection technology
|
M12x1 A coded to EN 61076-2-101 |
|
Electrical connection: outlet 2, number of pins / wires
|
5 |
|
Elektrischer Anschluss Ventil, Anschlussart
|
Plug |
|
Elektrischer Anschluss Ventil, Anschlusstechnik
|
M12x1 A coded to EN 61076-2-101 |
|
Elektrischer Anschluss Ventil, Anzahl Pole/Adern
|
8 |
|
Electrical connection sensor, connection type
|
2x socket |
|
Electrical connection sensor, connection technology
|
M12x1 A coded to EN 61076-2-101 |
|
Electrical connection sensor, number of pins / wires
|
8 |
|
Material information
|
RoHs compliant |
|
Seals material
|
FKM |
|
Weight
|
350 g / Pcs |
|
Customs duty number
|
85371098 |
|
Manufacturer
|
Festo |
