Materials:
Housing and front ring: 1.4301, measuring system: Cu alloy, (1.4404 for pressures >= 100 bar), connection: brass, Window: Instrument plate glass, mounting bracket: Galvanised steel, rear side
Connection thread:
G 1/2" *, back eccentric
Class:
1,0
Temperature range:
Environment: -40°C to +60°C, measured material, -40°C to +80°C
Dial:

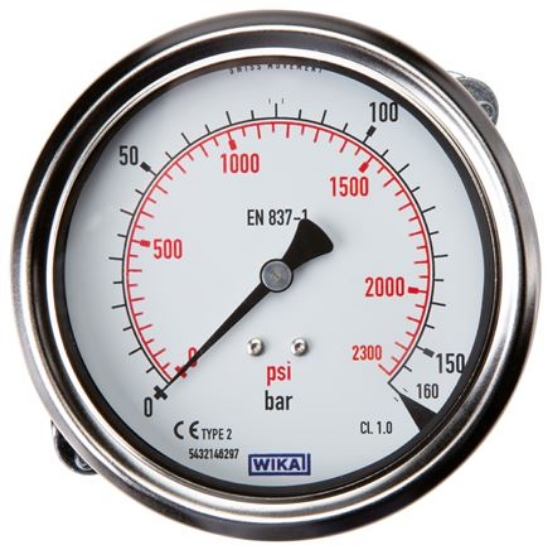

1. Scale outside (black), display in bar, 2. scale inside (red), display in PSI
Protection class:
IP 54
Note:
WIKA Type 212.20
Optional:
ISO calibration certificate (factory calibration certificate) acc. to DIN EN ISO 17025, VDI and data sheet DAkkS-DKD-MB-3 with 5 measurement points
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
Display range [bar]
|
0 - 1 |
|
Scale division [bar]
|
0,02 |
