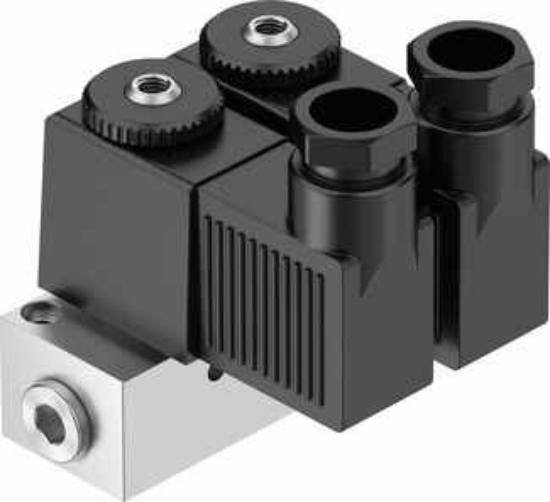

BMFH-2-3-M5(4522) سلنویید ولو فستو
- Valve function2x3/2-way, monostable, closed
- Type of actuationElectric
- Standard nominal flow rate50 l/min
- pneumatic working portM5
- Operating pressure0 MPa ... 0.8 MPa
- Operating pressure0 bar ... 8 bar
- DesignPoppet valve with spring return
- Type of resetMechanical spring
- Degree of protectionIP65
- Nominal size1.3 mm
- Sealing principleSoft
- Max. number of valve positions2
- Type of pilotingDirect
- Symbol00991653
- Power consumption, pull7.5 W
- Power consumption, hold6 W
- Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformityVDMA24364-B2-L
- Media temperature-10 °C ... 60 °C
- Ambient temperature-5 °C ... 40 °C
- Product weight245 g
- Electrical connectionPlugs
- Type of mountingWith through-hole
- Pneumatic connection, port 1G1/8
- Pneumatic connection, port 2M5
- Pneumatic connection, port 3M5
- Material housingAluminium
