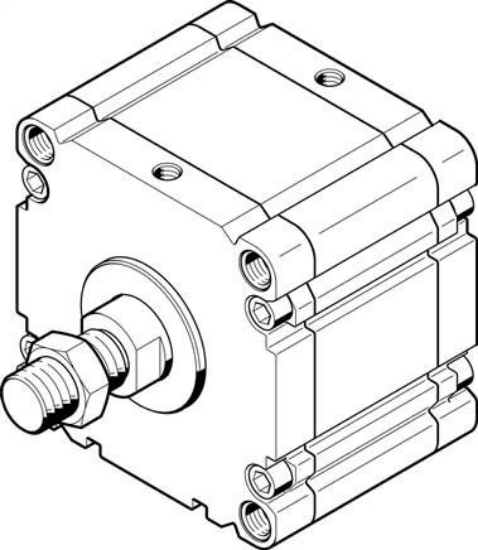

Stroke [mm]
|
20 |
Piston diameter
|
125 mm |
Dampening
|
P: Elastic silencer rings / plates double-sided |
installation position
|
arbitrary |
Principle of operation
|
double acting |
Piston rod end
|
Male thread |
Construction set up
|
Piston |
Position detection
|
For proximity switch |
Variants
|
One-sided piston rod |
Operating pressure [bar]
|
0.5 to 10 |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
ambient temperature [°C]
|
-20 to 80 |
Impact energy at the end positions [J]
|
3,30 |
Theoretical force at 6 bar, Return flow [N]
|
6.881 |
Theoretical force at 6 bar, flow [N]
|
7.363 |
Moving mass at 0 mm stroke [g]
|
1.317 |
Weight supplement per 10 mm stroke [g]
|
168 |
Base weight at 0 mm stroke [g]
|
3.426 |
Supplement moved mass per 10 mm stroke [g]
|
63 |
Fastening type
|
With throughway bores |
Pneumatic connection
|
G1/4 |
Flush screw material
|
Zinc plated steel |
Cover material
|
Aluminium wrought alloy |
Dynamic seals material
|
NBR |
Piston rod material
|
High-alloyed steel |
Cylinder tube material
|
Aluminium wrought alloy |
Weight
|
3,5 kg / Pcs |
GTIN
|
4052568143343 |
Customs duty number
|
84123100 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: ADVU/AEVU (english) , Data sheet |
