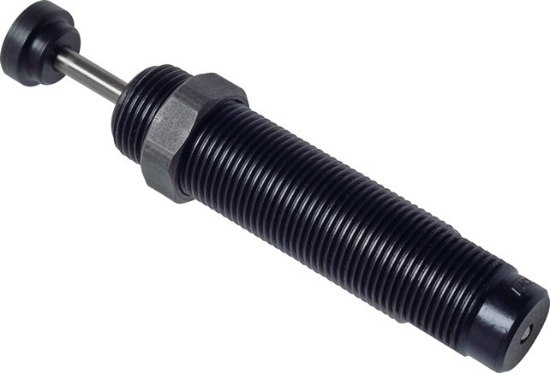

Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
max. Energy consumption per stroke (W3) [Nm]
|
73 |
|
max. Energy consumption per hour (W4) [Nm]
|
68.000 |
|
effective mass (me) [KGM]
|
68 - 408 |
|
Spring force [N]
|
11 - 32 |
|
Thread B
|
M 25 x 1.5 |
|
Max. axial deviation* [°]
|
5 |
|
A [mm]
|
7,0 |
|
C [mm]
|
HEX 23 |
|
D [mm]
|
106,4 |
|
E [mm]
|
10,0 |
|
F [mm]
|
HEX 30 |
|
Ø G [mm]
|
6,3 |
|
H / stroke [mm]
|
25 |
|
I [mm]
|
36,3 |
|
J [mm]
|
4,6 |
|
Ø K [mm]
|
23 |
|
Clamping flange****
|
|
|
Stop sleeve
|
|
|
Side load adapter***
|
|
|
Locking nut
|
|
|
Temperature range [°C]
|
0 to +66 |
