Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-5°C to +60°C
Operating pressure:
0 - 8 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|

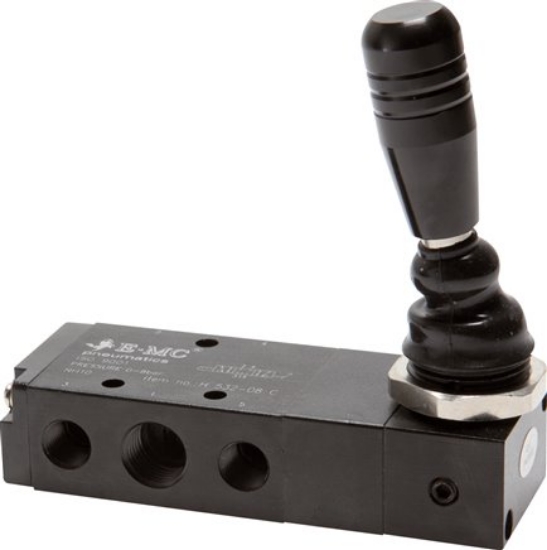

function
|
Centre position vented, spring return |
|
Model series
|
VH20 |
|
Thread
|
G 1/4" (exhaust G 1/8") |
|
flow [l/min]
|
600 |
|
A [mm]
|
97,7 |
|
B [mm]
|
35 |
|
C [mm]
|
22 |
|
D [mm]
|
31,7 |
|
E [mm]
|
21,7 |
|
F [mm]
|
20 |
|
G1
|
G 1/4" |
|
G2
|
G 1/8" |
|
H [mm]
|
4,3 |
|
J [mm]
|
24 |
|
K [mm]
|
95 |
|
M [mm]
|
14,2 |
|
N [mm]
|
35 |
|
O [mm]
|
21,7 |
|
P [mm]
|
3 |
|
S [mm]
|
20 |
|
T [mm]
|
31,7 |
|
U
|
M 22 x 1.5 |
|
V [mm]
|
5 |
|
W [mm]
|
0 |
|
X [mm]
|
5,5 |
|
Weight
|
270 g / Pcs |
|
GTIN
|
4050571350154 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
EMC |
|
Document
|
Catalogue page Atlas 9, Data sheet |
