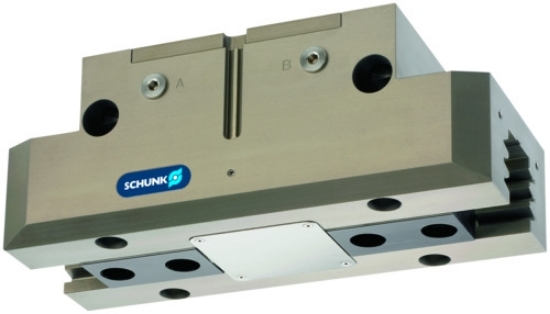

گریپر پنوماتیک موازی SCHUNK - PGN-plus 200-2-SD با مشخصات فنی زیر:
Universal gripper PGN-plus, Size: 200, pneumatic, in a dustproof version
- Stroke per jaw: 14 mm
- Closing force: 4650 N
- Opening force: 4980 N
- Max. ambient temperature: 90 °C
Technical data PGN-plus 200-2-SD
ID: 37371155
Version: Dustproof version
Closing force (with finger lengths of 0 mm) [N]: 5265
Opening force (with finger lengths of 0 mm) [N]: 5622
Recommended workpiece weight [kg]: 23.5
Fluid consumption double stroke [cm³]: 385
Min. operating pressure [bar]: 2.5
Max. operating pressure [bar]: 8
Nominal operating pressure [bar]: 6
Min. air purge pressure [bar]: 0.5
Max. air purge pressure [bar]: 1
Max. permissible finger length [mm]: 240
Max. permissible mass per finger [kg]: 6.5
Min. ambient temperature [°C]: 5
Max. ambient temperature [°C]: 90
Repeat accuracy [mm]: 0.02
Cleanroom class ISO 14644-1:1999: 5
Max. force axial Fz max. [N]: 5000
General notes about the series
Gripping force
is the arithmetic sum of the individual force applied to each jaw at distance P (see illustration).
Finger length
is measured from the reference surface as the distance P in direction to the main axis.
The maximum permissible finger length applies until the nominal operating pressure is achieved. With higher pressures, the finger length must be reduced proportionally to the nominal operating pressure.
Repeat accuracy
is defined as a distribution of the end Position for 100 consecutive strokes.
Workpiece weight
is calculated for force-fit gripping with a coefficient of static friction of 0.1 and a safety factor of 2 against workpiece slippage at acceleration due to gravity g. For form-fit or capture gripping, there are significantly higher permissible workpiece weights.
Closing and opening times
are purely the times that the base jaws or fingers are in motion. Valve switching times, hose fill times, or PLC reaction times are not included, and are to be considered when cycle times are calculated.
Cleanroom class ISO 14644-1:1999
5
Operating principle
Wedge gear with surface power transmission
Housing material
Aluminum
Base jaw material
Steel
Actuation
pneumatic, with filtered compressed air as per ISO 8573-1:2010 [7:4:4].
Warranty
36 months
Maintenance and repair
-
Scope of delivery
Brackets for proximity switches, centering sleeves, O-rings for direct connection, assembly instructions (operating manual with declaration of incorporation is available online)
Gripping force maintenance device
possible by using the version with mechanical gripping force maintenance or pressure maintenance valve SDV-P
برای دریافت اطلاعات بیشتر گریپر پنوماتیک موازی SCHUNK - PGN-plus 200-2-SD می توانید به وبسایت SCHUNK مراجعه نمایید.
برای تهیه این گریپر پنوماتیک موازی SCHUNK - PGN-plus 200-2-SD در فروشگاه توان تکنیک به سبد خرید وارد و سفارشگذاری نمایید.
