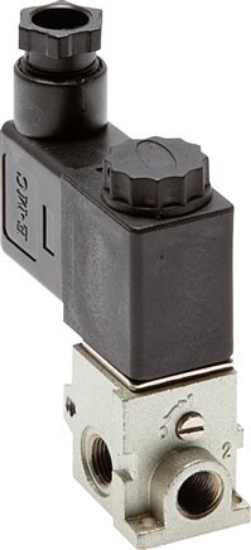

3/2-way solenoid valve, G 1/8", closed (NC), 230 V AC

Materials:

Bodies: Die-cast zinc, seals: NBR, pilot: polyamide

Temperature range:

-5°C to +60°C

Operating pressure:

0 - 8 bar

Media:

oiled and unoiled filtered compressed air

Switching time (at 5 bar):

<50 ms, max. 10 switching cycles/sec.

Nominal width:

1,2 mm

Control voltages:

Standard: 24 V=, 230 V AC, upon request: other voltages

Voltage tolerance:

± 10 %

Power consumption:

Direct current: 4,8 W, alternating current: 5 VA

Protection class (VDE 0470/EN 60529):

IP 65

Solenoid:

T (plug size 1)

Service life:

min. 12 million switching cycles

Scope of delivery:

Valve incl. interlinking accessories and locking screw (for individual use of the valve).

Advantages:

•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.

Information:

These valves are generally delivered with coils and plugs!
