Width [mm]
|
28,8 |
|
Length [mm]
|
107,3 |
|
Flow direction
|
Reversible |
|
Valve island structure
|
Valve sizes mixable |
|
Operating pressure [bar]
|
-0.9 to 10 |
|
Control pressure [bar]
|
3 to 8 |
|
Corrosion resistant class KBK
|
3 - severe corrosion stress |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
180,00 |
|
Material information
|
RoHs compliant |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|

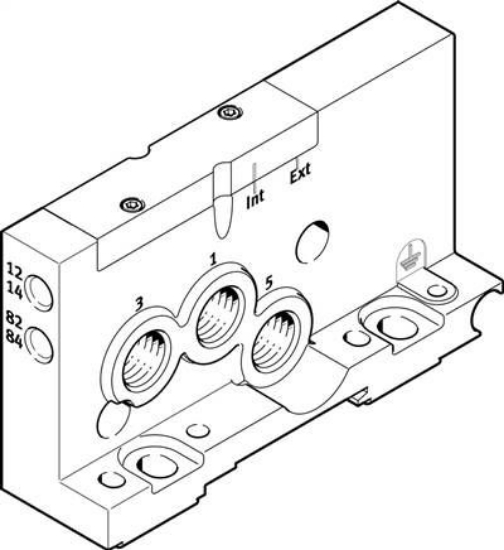

End plate material
|
Aluminium die casting |
|
Integrated function
|
Coding cover for establishing the control air supply (internal or external) |
|
Support air control connection 12/14
|
M7 |
|
Exhaust control connection 82/84
|
M7 |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 3
|
G1/4 |
|
Pneumatic connection 5
|
G1/4 |
|
Weight
|
180,00 g / Pcs |
|
GTIN
|
4052568055875 |
|
Customs duty number
|
84819000 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal MPA-L (english) , Data sheet |
