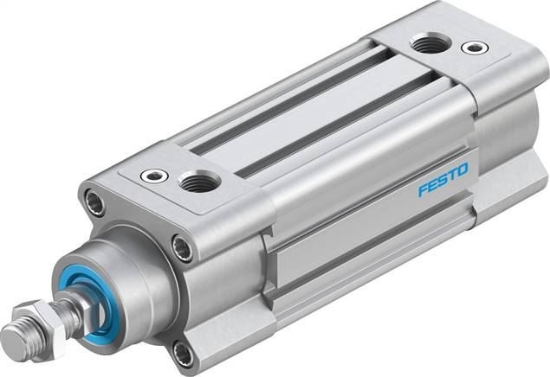

DSBC-40-50-D3-PPVA-N3 (3660619) سیلندر استاندارد پنوماتیک فستو

کد سفارش تولید کننده: 3660619
مشخصات
عنوان ویژگی مقدار ویژگی
Stroke [mm] 50
Piston diameter 40 mm
Piston rod thread M12x1,25
Dampening PPV: Pneumatic dampening both sides adjustable
installation position arbitrary
Complies to standard ISO 15552
Piston rod end Male thread
Construction set up Piston
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 0.6 to 12
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
ambient temperature [°C] -20 to 80
Impact energy at the end positions [J] 0,7
Dampening length [mm] 19
Theoretical force at 6 bar, Return flow [N] 633
Theoretical force at 6 bar, flow [N] 754
Moving mass at 0 mm stroke [g] 205
Weight supplement per 10 mm stroke [g] 37
Base weight at 0 mm stroke [g] 740
Supplement moved mass per 10 mm stroke [g] 16
Fastening type With female thread
Pneumatic connection G1/4
Material information RoHs compliant
Cover material Aluminium die casting
Seals material TPE-U(PU)
Piston rod material High-alloyed steel
Cylinder tube material Aluminium wrought alloy
Weight 1,1 kg / Pcs
Customs duty number 84123100
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: DSBC (english) Data sheet
