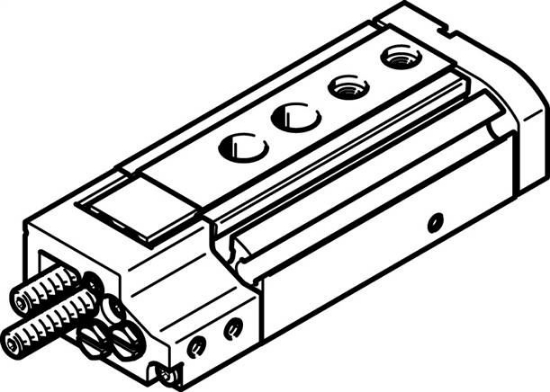

Stroke [mm]
|
10 |
|
Alignable end position range / Length front [mm]
|
14,5 |
|
Alignable end position range / Length rear [mm]
|
13,5 |
|
Piston diameter
|
6 mm |
|
Operating mode actuator unit
|
Joch |
|
Dampening
|
P1: Elastic silencer rings / plates double-sided With fixed limit stop |
|
installation position
|
arbitrary |
|
Guide
|
Ball cage guide |
|
Construction set up
|
Joch kinematics |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
2.5 to 8 |
|
Max. speed [m/s]
|
0,5 |
|
Repeatability
|
±0.01 mm |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
ambient temperature [°C]
|
0 to 60 |
|
Impact energy at the end positions [J]
|
0,005 |
|
Dampening length [mm]
|
1,7 |
|
Max. force Fy [N]
|
343 |
|
Max. force Fz [N]
|
343 |
|
Max. torque Mx [Nm]
|
2 |
|
Max. torque My [Nm]
|
2,0 |
|
Max. torque Mz [Nm]
|
2,0 |
|
Theoretical force at 6 bar, Return flow [N]
|
13 |
|
Theoretical force at 6 bar, flow [N]
|
17 |
|
Moving mass [g]
|
31 |
|
Product weight [g]
|
85 |
|
Alternative connections
|
See product drawing |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection
|
M3 |
|
Material information
|
Copper and PTFE-free |
|
Cover material
|
Aluminium wrought alloy |
|
Seals material
|
HNBR |
|
Housing material
|
Aluminium wrought alloy |
|
Piston rod material
|
High-alloyed stainless steels |
|
Weight
|
85 g / Pcs |
|
GTIN
|
4052568182588 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DGSL (english) , Data sheet |
